Problem with excel export (visibility columns) when scrollX enabled

itajackass

Hi i've a problem export excel with this scenario:
- responsive disable, scrollx enabled, fixed columns start and end
- small screen to simulate/enable the scrollx
- some visibility columns disabled by the user

test link: https://live.datatables.net/jofuzaro/1/

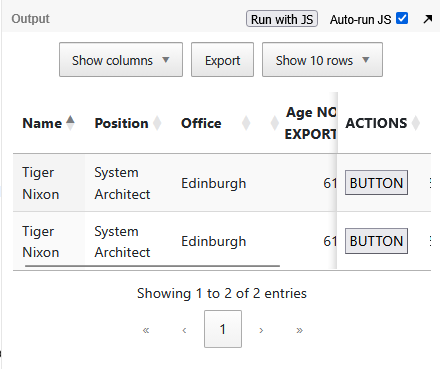

try to use a small screen to obtain fixed columns and scrollx like this and hide column, for example, SALARY

then try to export in excel and open the excel: it is corrupted

another try: comment scrollX: true and try again: now export work as expected, but now i've to scroll right to see the last column (cause is not fixed anymore)

another try: uncomment //scrollX: true and hide SALARY column by visibility
edit code to:

var table = $(node).closest('table').DataTable();
return table.column(idx).visible() &&  !$(node).is('.noVis, .azioni, .colControl');

now export is not broken, but all columns are exported (also SALARY)

Any suggest to fix this issue? thanks

allan

try to use a small screen to obtain fixed columns and scrollx like this and hide column, for example, SALARY

The generated Excel file opens in both Office online and Libreoffice locally without any problems. Unfortunately I don't have local Excel. Is it local Excel you are using?

Allan

itajackass

Hi, yes I use local Office. I tried to install Libreoffice, it opens the file without error message...but... the file is simply empty!
It is not a problem with the reader. I create a video to show you how to replicate problem with wetransfer: https://we.tl/t-g2rdcU0xMD

kthorngren

What is your goal with this code?

                                var tableID = $(node).closest('table').attr('id');
                                return tableID === undefined? false : $("#"+tableID).DataTable().column(idx).visible();

Debugging the code the value of tableID is always undefined. The reason is Datatables creates a duplicate table with the header to facilitate scrolling. Using $(node).closest('table') is getting the duplicated table element as the node parameter is from the duplicated header.

EDIT: In this case $(node).closest('table').attr('id') will always return undefined resulting in an empty SS.

Instead use table().node() to get the original table element. For example:
var tableID = $( table.table().node() ).attr('id');

Updated test case:
https://live.datatables.net/weqefohu/1/edit

Possibly you can simplify this by using column-selector as a string with the :not() selector. For example:

columns: ':not(.noVis, .colActions, .colControl)'

See this test case:
https://live.datatables.net/xayowaso/1/edit

Kevin

itajackass

thanks for your reply.
my goal is to export only columns without those classes and export all columns NOT manually hidden using colvis.
I can confirm that your test case here: https://live.datatables.net/weqefohu/1/edit is perfect working.

The other code (btw is the code i was using time ago...):

columns: ':not(.noVis, .colActions, .colControl)'

is not good for me. why? because it export all columns (except for noVis/colActions/colControl) and bypass colvis plugin (if I want to manually hide some columns, the export ignore my custom selection and export all hided columns).

EDIT: is there a way to create a "reusable" code? because i need to include it in a lot of pages and if I use:

var tableID = $( table.table().node() ).attr('id');

I must remember in each page to edit "table" with the name of variable, for example:

var tableID = $( orders_table.table().node() ).attr('id');
...
var tableID = $( invoices_table.table().node() ).attr('id');
....etc...

is there some way to retrieve the original table using one of these parameters of the function? idx, data, node ?

kthorngren

See this example for the selector to use to export visible columns, ie, :visible. Add that selector to the :not() selector, like this:

columns: ':visible :not(.noVis, .colActions, .colControl)'

Updated test case:
https://live.datatables.net/xayowaso/2/edit

is there some way to retrieve the original table using one of these parameters of the function? idx, data, node ?

I don't know of a reliable way for this specific instance. Do you still need this with the above?

Kevin

itajackass

OMG!
I was looking for a complicated solution only because i was using a bad code.
Before implementing this code i was simply using:

columns: ':not(.noVis, .colActions, .colControl):visible'

but it doesn't work if I enable responsive, because during export it exclude also columns hidden by responsiveness (and i want to exclude only columns selected by the user by colvis)!! See here:

https://live.datatables.net/xayowaso/3/edit

Your code seems to be similar but it works!!!! thanks:

columns: ':visible :not(.noVis, .colActions, .colControl)'
